Manual internal reading lensometer.

• LED Lighting.

• Measurement Range: -25 to + 25 D.

• Minimum Reading: 0.125 D.

• Compensating prism.

• Axis from: 0 to 180°.

• Eyepiece adjustment: +- 5 D.

• Weight: 3 Kg.

Warning:
Once your purchase has been completed, we will contact you to arrange the shipping payment, as it is processed separately.

Excellent equipment, compact, easy to use with the newest technology and all the functions. that you need, imported from Germany, allows you to measure all kinds of lenses, added to Hartman, wavefront technology, It has a high-speed processor which allows ultra-fast readings.

• Dial: from 0 to ±25.00 Diopter.

• Cylinder: from 0 to ±10 Diopter.

• In steps of 0.01, 0.12 and 0.25 Diopter.

• Addition: from 0 to 10 Diopter.

• Prisms: from 0 to 20Δ In steps of 0.01, 0.12 and 0.25 Diopter.

• Diameter of the lenses to measure: from 15 to 100 mm.

• Contact lenses: larger than 5 mm.

• Screen: 5.7” TFT color LCD, Touch, multi-position.

• Thermal Printer

• LED: Green, wavelength 545 mm.

• Technology to measure WAVEFRONT type.

• Contact lens reading (requires accessory not included).

• Measurement: UV and BLUE LIGHT transmission, from 0 to 100%

• Dimensions: 192 (L) X 208 (P) X 416 (A).

• Weight: 3.50 Kg

Warning:
Once your purchase has been completed, we will contact you to arrange the shipping payment, as it is processed separately.

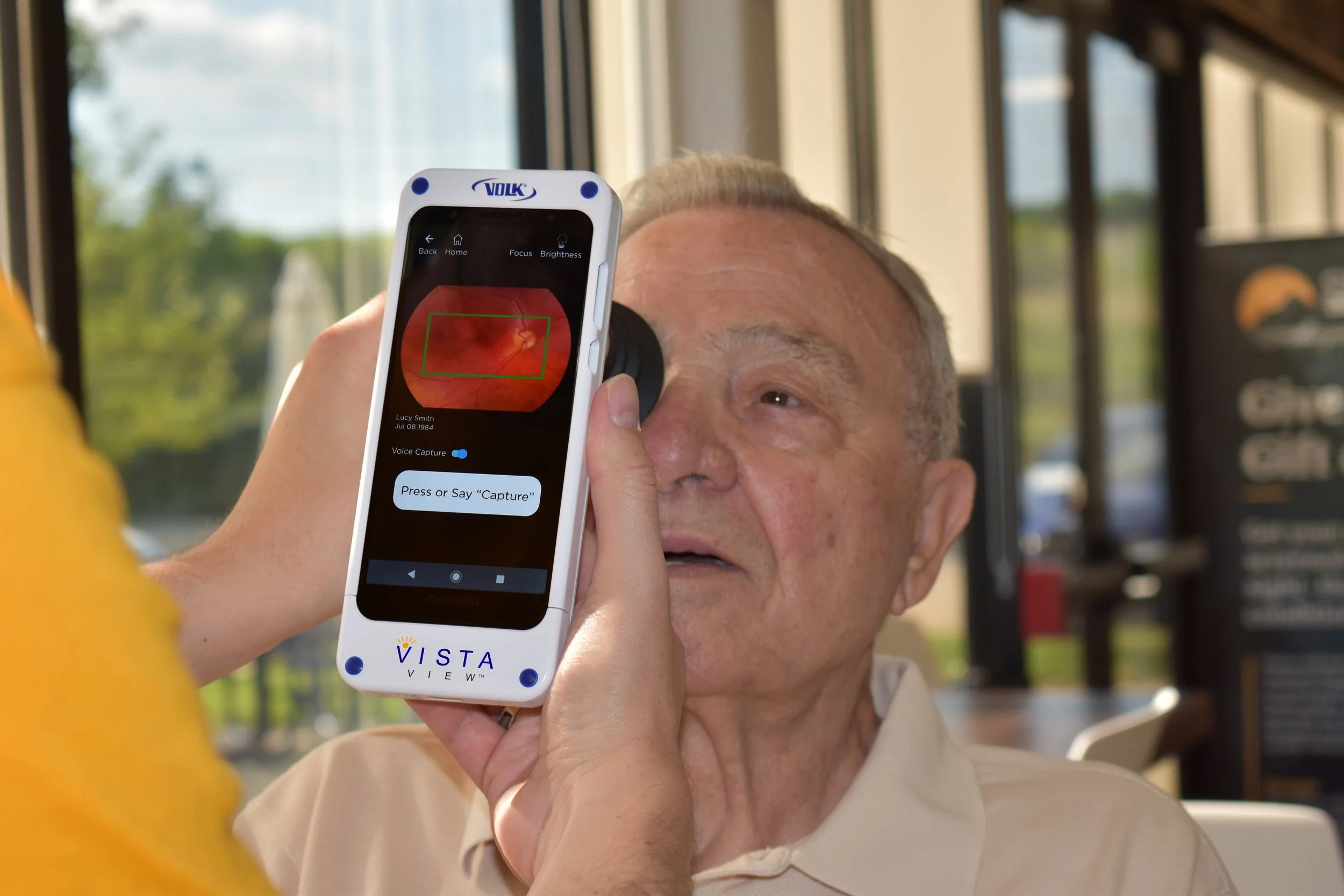

Used to check optic nerve disease, macular disease, retinal choroidal disease, retinitis pigmentosa and various fundus diseases.

At the same time, it can detect retinal-related vascular diseases in time, such as the microcirculation changes caused by coronary heart disease, hypertension, diabetes and other diseases.

Warning:
Once your purchase has been completed, we will contact you to arrange the shipping payment, as it is processed separately.

• Eyepiece: 10X and 16X

• Objective lens: 1X

• Total magnification: 10X and 16X

• Diopter adjustment: ±5D

• Pupil Distance: 52~72mm

• Working Distance: 80mm

• Slit Width: 0~10mm continuously adjustable

• Slit Height: 0.5mm, 3mm, 5mm, 10mm

• Spot Diameter: 0.5mm, 3mm, 5mm, 10mm

• Slit Rotator Angle Horizontal ±30° Filters Heat absorption, Grey, Red free, Cobalt blue

• Illumination: White LED

• Working hours: 5~6 hours

• Voltage / Frequency AC 220V10% / 50Hz1Hz / AC 110V10%/ 60Hz1Hz

• Net weight: 750 Gr

• Gross Weight: 2.5 KGS

• Package white and black Carrying Cases for choice

• Packing size: 410mm*195mm*230mm

Warning:
Once your purchase has been completed, we will contact you to arrange the shipping payment, as it is processed separately.

• Range of PD scale: 50–80 mm

• Single side (right of left) scale: 25–40mm

• Minimum scale value: 1mm

• Axis sclae step: 5º

• Lens holders on right/left side available for 5 pieces of standard trial lenses inserted simultaneity.

• Range of nose bridge adjunstment:

• Height: 0–23 mm

• Angle: 0º–360º

• Color: Black

Warning:
Once your purchase has been completed, we will contact you to arrange the shipping payment, as it is processed separately.

• Plastic Rings

• Dials from: 0 to -+/- 6 D (0.25 D steps).

• Spheres from: +/- 6 to -/+10 (0.5 D steps).

• Dials from: +/- 10 to -/+ 20 (1 D steps).

• Cylinders from: 0 to +/- 4 (0.25 D steps).

• Cylinders from: +/- 4 to +/- 6 (in steps of 0.5 D).

• Prisms: 0.5,1,2,3,4,5,6,7,8,9 and 10.

• Filters: 1 red, 1 green, 1 black, 2 flat lenses,

• 2 madox white, 2 slits, 2 crossed lines, 2 pinhole, 2 frosted lens and 2 crossed cylinders.

• Does not include universal test frame

• Metal Case

Warning:
Once your purchase has been completed, we will contact you to arrange the shipping payment, as it is processed separately.

• Metal Case / Metal Rings

• Dials from: 0 to -+/- 6 D (0.25 D steps).

• Spheres from: +/- 6 to -/+10 (0.5 D steps).

• Dials from: +/- 10 to -/+ 20 (1 D steps).

• Cylinders from: 0 to +/- 4 (0.25 D steps).

• Cylinders from: +/- 4 to +/- 6 (in steps of 0.5 D).

• Prisms:0.5,1,2,3,4,5,6,7,8,9 and 10.

• Filters: 1 red, 1 green, 1 black, 2 flat lenses, 2 madox white, 2 slits, 2 crossed lines, 2 pinhole, 2 frosted lens and 2 crossed cylinders.

• Does not include universal test frame.

Warning:
Once your purchase has been completed, we will contact you to arrange the shipping payment, as it is processed separately.
